| ชื่อแบรนด์: | BABOS |
| เลขรุ่น: | C1020C06 |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 20pcs |
| ราคา: | โปร่ง |
| เงื่อนไขการจ่ายเงิน: | L/C, D/A, D/P, T/T, Western Union |
| ความสามารถในการจําหน่าย: | 10,0000 ชิ้นต่อเดือน |
Description:

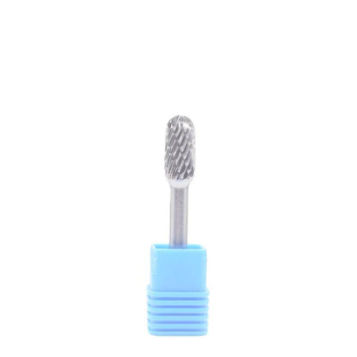

The SC Cylindrical Radius Carbide Burr is designed for high-performance metal machining and deburring applications. Manufactured from premium tungsten carbide, it offers excellent hardness, durability, and cutting efficiency. The 10mm diameter head with 20mm cutting length provides superior material removal, while the 6mm shank ensures stable tool holding during high-speed grinding. The double cut flute design delivers smoother operation, reduced vibration, and finer surface finishing.
This burr is ideal for use on a wide range of materials including steel, stainless steel, carbon steel, cast iron, aluminum, and non-ferrous metals. Widely used in mold processing, metal fabrication, tool manufacturing, welding, and automotive applications.
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:10mm
Length of Flute: 20mm
Shank Diameter: 6mm
OAL:65mm
Cut Type: Standard Double Cut
Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | |||||
| Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length (mm) | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | ||
| 3 | 2 | 11 | 38 | C0211 | Solid |
| 2.5 | 11 | 38 | C2511 | Solid | |
| 3 | 13 | 38 | C0313 | Solid | |
| 5 | 13 | 38 | C0513 | Brazed | |
| 6 | 13 | 45 | C0613 | Brazed | |
| 6 | 6 | 16 | 63 | C0616 | Brazed |
| 6 | 25 | 65 | C0625 | Solid | |
| 8 | 20 | 65 | C0820 | Brazed | |
| 10 | 20 | 65 | C1020 | Brazed | |
| 11 | 25 | 70 | C1125 | Brazed | |
| 12 | 25 | 70 | C1225 | Brazed | |
| 16 | 25 | 70 | C1625 | Brazed | |
| 19 | 25 | 70 | C1925 | Brazed | |
| 25 | 25 | 70 | C2525 | Brazed | |
| 8 | 12 | 25 | 70 | C1225 | Brazed |
| 16 | 25 | 70 | C1625 | Brazed | |
| 19 | 25 | 70 | C1925 | Brazed | |
| 25 | 25 | 70 | C2525 | Brazed | |
| Inch Standard | |||||
| 1/8'' | 1/8" | 1/2" | 1-1/2" | SC-42 | Solid |
| 1/4" | 1/2" | 2" | SC-51 | Brazed | |
| 1/4" | 3/16" | 9/32" | 2'' | SC-14 | Solid |
| 1/4" | 1" | 2'' | SC-1L | Solid | |
| 5/16" | 3/4'' | 2-1/2" | SC-2 | Brazed | |
| 3/8" | 3/4'' | 2-1/2" | SC-3 | Brazed | |
| 7/16" | 1" | 2-3/4" | SC-4 | Brazed | |
| 1/2" | 1" | 2-3/4" | SC-5 | Brazed | |
| 5/8" | 1" | 2-3/4" | SC-6 | Brazed | |
| 3/4" | 1" | 2-3/4" | SC-7 | Brazed | |
| 7/8" | 1" | 2-3/4" | SC-8 | Brazed | |
| 3/8'' | 1" | 1" | 2-3/4" | SC-9 | Brazed |
Customization:
Cut Selection Guide:
| STANDARD CUT(M) |
STANDARD DOUBLE CUT (X) |
WIDE CUT (C) |
FINE CUT (F) |
ALUMINUM CUT(W) |
DIAMOND CUT(D) |
|
|
|
|
|
|
